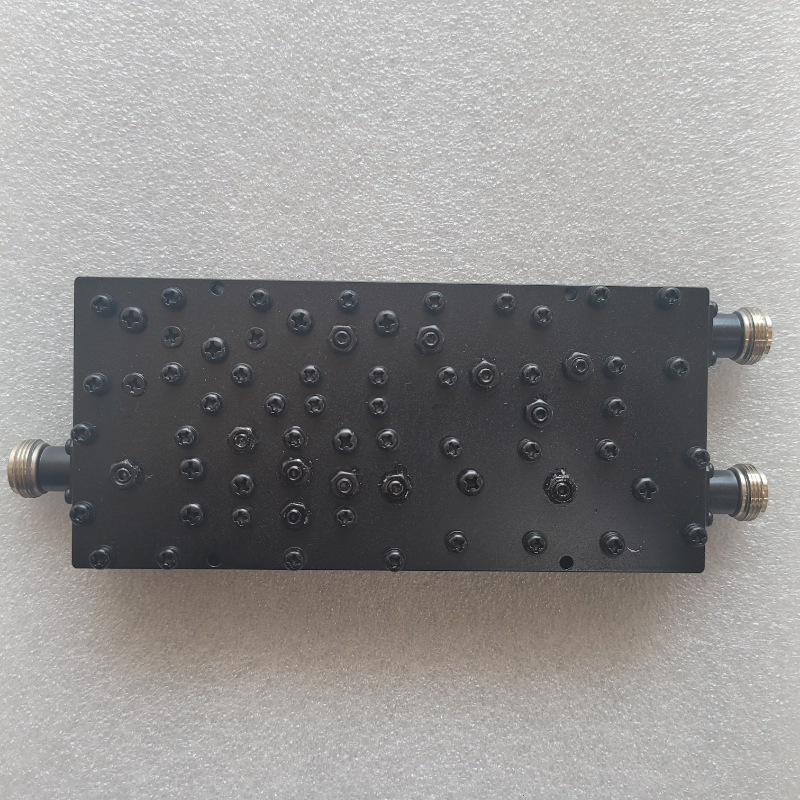

AIR LINE FILTER (DC~1800MHz / 2200~6000MHz)
| Description | Specification |
|---|---|
| AIR LINE FILTER (DC~1800MHz / 2200~6000MHz) | Frequency range [MHz] DC-1800 /2200-6000 Insertion loss at passbands 1.0 dB Ripple at passbands 0.7 dB Return Loss at BW 13 dB Min Rejection 40dB Min @ 2200MHz Port Isolation 30dB Min Power Handling 130W (Port) Total Power (AVG) 260W Operating Temp. -30 to +70C |
