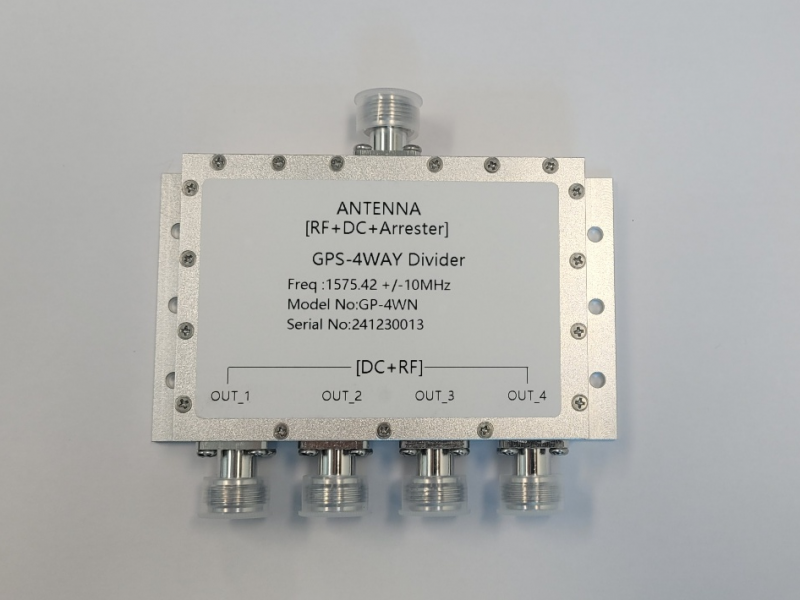

COMPONENTS GPS DIVIDER (4way)
본문
Detailed information
|
Model |
DBSPL-2WN_3WN_4WN |
|||
|
|
2way |
3way |
4way |
|
|
FrequencyBand |
1563Mhz~1610Mhz |
1586.5Mhz±23.5Mhz |
||
|
Gain |
0±3dB |
|
||
|
VSWR |
<1.5:1 |
|
||
|
NoiseFigure |
5.5dB(Max) |
|
||
|
Isolation |
25.0dB(Min) |
|
||
|
OperatingVoltage |
5Vdc+/-20% |
|
||
|
Dimension |
103/91/22mm |
106.5/104/22mm |
123/104/22mm |
W/H/D |
|
ConnectorType |
NtypeFemale |
In-put |
||
|
NtypeFemale |
Out-put |
|||
|
Material |
Aluminum |
|
||
